GAUGE MASTER - 2000


INTRODUCTION


It is a complete AGC Control for the Cold Rolling Mills. The system is designed for incorporating two sensor heads primarily used for thickness measurements of sheets on reversible rolling mills. This system utilizes highly reliable Digital Solid State Beta Gauge with nucleonic technology.

The Sensor Heads are mounted on the C-Frame which can be programmed to traverse across the sheet. The traversing speed of the C-Frame can be controlled. The traversed width can be parameterized and even automatic edge-of-strip detection is possible. The C-Frame automatically moves back to the home position in case of breakage in sheet.
The Sensor moves across the sheet and detects the variability in thickness andautomatically corrects and control un-winder tension, mill speed and nib gap including 100% supervision for instantaneous mill overload protection.
Gauge Master - 2000


DIGITAL BETA GAUGE


Digital Beta Gauge Digital solid state beta gauge is intrinsically more stable and efficient than analog detectors. There is less drift in operation, less frequent calibration is required, and less maintenance. Measurement is precise and reliability is excellent. All measurement is in real time, whether during critical start-up, online production or while changing products, you can make fast decisions to maintain high quality with less waste. Add in low life cycle costs and you can obtain a significant contribution to the bottom line.
  • Transmission mode beta gauge with accurate measurement capabilities and solid state reliability.
  • Small and compact:- can be installed almost anywhere with minimum impact on existing machinery.
  • Easy to implement multipoint measurement strategies.
  • Lowest radiation source can be installed and easily maintained by end user.
  • Intrinsically stable: digital counting mode eliminates sensors drifts due to changes in temperature, high voltage or analog components. No frequent calibrations required.


Computer Control Console ( CD PROFILE )

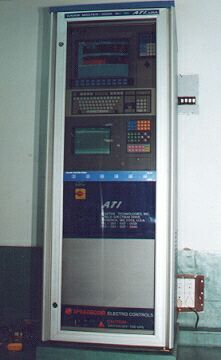

Gauge Master-1200 uses unique computer workstation and its industrially proven components for gauge viewing and control. It incorporates a rugged workstation with feather touch key-board. Industrial I/O interface units having unique expansion facility. The Gauge Master-1200 console can be easily interfaced with various inputs such as temperature, speed, melt pressure and many more machine parameters. It can accept signals in terms of voltage, current, frequency using suitable module.
       Computer Control Console for Gauge Master-2000


SCANNING 'C' FRAME


    Scanning C-Frame
Gauge Master-2000 is designed to operate 'C' Frame which is fabricated from very light weight aluminum extruded sections and driven by a stepper motor / pneumatic cylinder with timing belt and linear bearings. The guide rails are fully covered and protected from harsh environment. The scanner is programmed for various scanning rates along with programmable position measurement for easy cross direction variation detection and adjustments.


REMOTE GAUGE VIEW - 14


       Remote Gauge View-14-->picture1    Remote Gauge View-14-->picture2
GAUGE VIEW 14 is a remote video color screen which can be mounted on a stand or a dust-proof enclosure for easy gauge viewing as seen on console screen. The GAUGE VIEW 14 has feather touch keys to select production recipes and operation mode i.e. Auto / Manual. Even the quality roll/batch reports can be generated any time by simply pressing a print-key on the unit.


REAL TIME GAUGING SOFTWARE


Real Time Gauging Software
  • Supports 60 physical and derived gauges .
  • Multiple free format windows .
  • Full reporting package .
  • Complete calibration and recipe support, including reporting to meet ISO9000 requirements.
  • Instantaneous variation Indication .
  • Warning high / low alarm.

A 80 column printer can be attached to the system which automatically generates reports upon completion of roll.

All the reports can be recorded on floppy diskette and can be taken to other PC for analysis.



FEATURES

GAUGE MASTER 2000 auto gauging control system generates user friendly report such as

  • X Bar SPC chart
  • Range chart
  • X Bar Histogram
  • Gauge Summary Statistics
  • SPC Summary Statistics
  • Deviation chart in percentage
  • Reports of gauge set point, mean std. deviation, min & max variation with respect to set point v/s deviation range.


TECHNICAL SPECIFICATIONS

Detector Compact Size - 175mm x 60mm x 35mm.
Source Low Radiation - 500 mcr. ( Kr-85 / Sr-90 / Am-147 ).
Digital Detection Min. 10milli sec. / reading
Response Time 50 milli sec. to 1 sec.
Computer Control Console Data storage and roll reports.
Video display Colored video screen 14"
Keyboard Feather touch for recipe selection.
Recipe Upto 1000 recipe and storage.
Output Gauge Deviation output 5V or 10V.
Alarm 2 relay contact for warming and over range.
Power Supply 230V AC, 50 / 60 Hz.
Ambient Temperature 65C for gauge head / 45C for monitor unit.


APPLICATIONS

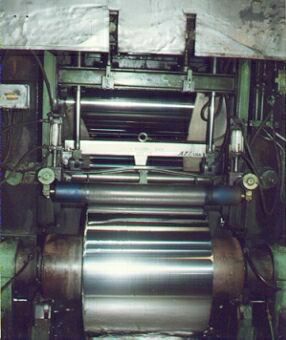

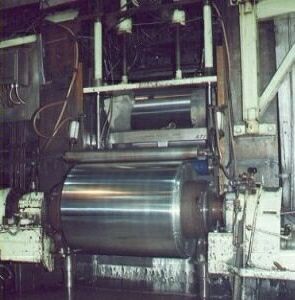

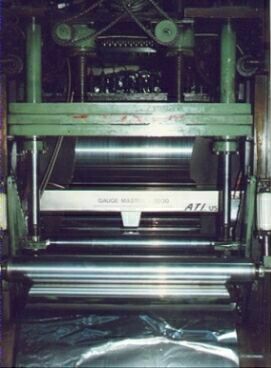

Following images are the applications of this gauge master specifically used in metal industry.
