MINITHERM PID - 2001


INTRODUCTION


This is a miniaturized micro- controller based temperature controller. The digital indication of the actual  temperature and set temperature is shown by a common three digit display. The display also provides indication for relay status and set-point parameters.

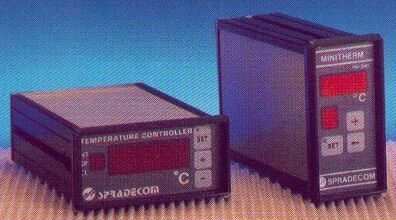

This digital temperature controller is available in two versions viz; "MINITHERM PID 2001(V)" i.e. vertical model and type "MINITHERM PID 2001(H)" i.e. horizontal model. These temperature controllers have the cooling system to bring down the temperature to the require temperature level, if there is an overshoot.





MiniTherm PID- 2001


FEATURES
  • Micro-controller based SMD Technology.
  • Miniature design - 1/2 DIN.
  • Dual Heat Cool PID Action.
  • Membrane Keypad.
  • Micro-controller based miniaturized temperature controller.
  • Rugged construction.
  • Industrially proven technology.
  • Panel-mounting type, 1/2 DIN cut-out.
  • Non-volatile memory.
  • SMD Technology.


TECHNICAL SPECIFICATIONS

DISPLAY

  • Three digit 0.3" red digital display for process variable, set-point and parameter type.

  • One digit 0.3" red display for Heat, Cool and set-point indication.

  • LED indication on SET key for programme / run mode.
KEY BOARD

Membrane key board for programming and operating the controller.

INPUT

  • Thermocouple types J, K.

  • RTD PT 100.

  • Cold junction compensation for thermocouple input.

Calibration accuracy ± 0.5% of span.
Temperature range 0°C to 1200°C.
OUTPUT Two relay output, one for Heat and one for Cool, rated at 230 VAC 0.5A (non-inductive load.)
GENERAL
Power supply 240 VAC ±10%, 50Hz.
Ambient 0°C to 45°C.
Power consumption 3 VA.
PHYSICAL
Case Aluminium extruded powder coated body with plastic die-cast bezel.
Terminals Barrier screw type. Can accept upto 2.5 mm. wire.
Bezel size 96(w) x 48(H) mm.
Depth  130 mm.
Panel Cut-Out 92 x 44 mm.
