SPEED INDICATOR [ SPD - 5000]


INTRODUCTION


This is a multi function micro-controller based instrument which has a wide application. It is user configurable for any one of the application as per requirement. It incorporates relay output for alarm annunciation and, digital input for auto reset facility. Many such indicators can be connected to a personal computer and controlled / operated remotely through the computer. It incorporates a non volatile memory for data retention.

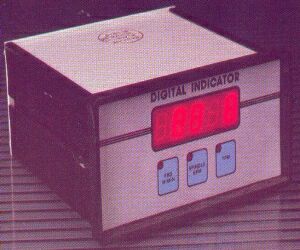

Speed Indicator SPD- 5000



FEATURES

  • Multi Purpose Speed Indicator.
  • Micro-controller based.
  • Field Calibration Facility.
  • Membrane Keypad.
  • Five Digit LED Display.
  • PC Compatible.
  • User configurable application.
  • Single input by proximity switch or encoder.
  • Non-volatile memory.
  • Flush type panel mounting with 1/2 DIN cut-out.
  • Incremental / Decremental counting.


TECHNICAL SPECIFICATIONS

DISPLAY

Five digit LED display for parameter observation.

KEY BOARD

Three keys membrane key pad.

INPUT
  • Two inputs for proximity switch or encoder input.

  • Potential free input for Auto / Manual reset.

OUTPUT Relay rated at 230 VAC  :  0.5 A ( non-inductive load ).
GENERAL
Power supply 240 VAC 10%, 50Hz.
Ambient 0C to 45C.
Power consumption 5 VA.
PHYSICAL
Case Aluminium extruded powder coated body with plastic die-cast bezel.
Terminals Barrier screw type. Can accept upto 2.5 mm. wire.
Bezel size 96(w) x 48(H) mm.
Depth  160 mm.
Panel Cut-Out 92 x 44 mm.


APPLICATIONS

The speed indicator has a wide application range. A few applications are as follows:
  • Event counter for counting number of items, batches, tablets etc. in a process.
  • Speed/Ratio indicator for two channels.
  • Length counter in meters / minute or cms / second.
  • Frequency counter.
  • Mains frequency indicator.
  • RPM indicator.
